IHG不銹鋼化工管道泵，是在ISG管道泵技術的基礎上，自行研究開發的新一代節能、環保立式離心泵。該系列泵性能優、可靠性高、壽命長、結構合理、 外形美觀，具有行業領先水平。
不銹鋼化工管道泵IHG型用途
IHG不銹鋼化工管道泵，供輸送不含固體顆粒，具有腐蝕性，粘度類似于水的液體，適用于石油、化工、冶金、電力、造紙、食口制藥等部門，使用溫度為-20℃~+105℃。
不銹鋼化工管道泵IHG型工作條件:
1、吸入壓力≤1．6MPa，或泵系統最高工作壓力 ≤1．6MPa，即泵吸入口壓力+泵揚程≤1．6MPa、泵靜壓試驗壓力為2．5MPa，訂貨時請注明系統工作壓力。泵系統工作壓力大于1．6MPa時應 在訂貨時另行提出，以便在制造時泵的過流部分和聯接部分采用鑄鋼材料。
2、環境溫度<40℃，相對濕度<95％。
3、所輸送介質中固體顆粒體積含量不超過單位體積的0．1％，粒度<0．2mm。
注：如使用介質為帶有細小顆粒，請?jiān)谟嗀洉r(shí)注明，以便廠家采用耐磨式機械密封。
不銹鋼化工管道泵IHG型產品特點:
運行平穩：泵軸的絕對同心度及葉輪優異的動靜平衡，保證平穩運行，絕無振動。
滴水不漏：不同材質的硬質合金密封，保證了不同介質輸送均無泄漏。
噪音低：兩個低噪音軸承支撐下的水泵，運轉平穩，除電機微弱聲響，基本無噪音。
故障率低：結構簡單合理，關鍵部分采用國際一流品質；配套，整機無故障工作時間大大提高。
維修方便：更換密封、軸承，簡易方便。
占地更�。撼隹诳上蜃蟆⑾蛴�、向上三個方向，便于管道布置安裝，節省空間。

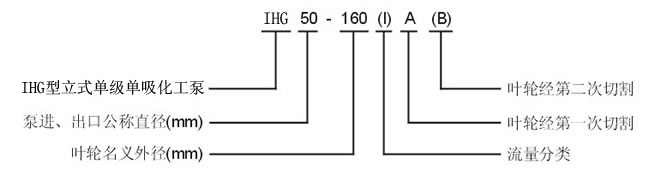

不銹鋼化工管道泵IHG型型號意義：
不銹鋼化工管道泵IHG型性能參數表
|
口徑
|
流量
|
揚程
|
效率
|
轉速
|
電機功率
|
必需汽蝕余量
|
|
mm
|
m3/h
|
L/S
|
m
|
%
|
r/min
|
KW
|
（NPSH）r
|
|
15-80
|
15
|
1.1
1.5
2.0
|
0.3
0.42
0.55
|
8.5
8
7
|
26
34
34
|
2800
|
0.18
|
2.3
|
|
20-110
|
20
|
1.8
2.5
3.3
|
0.5
0.69
0.91
|
16
15
13.5
|
25
34
35
|
2800
|
0.37
|
2.3
|
|
20-160
|
20
|
1.8
2.5
3.3
|
0.5
0.69
0.91
|
33
32
30
|
19
25
23
|
2900
|
0.75
|
2.3
|
|
25-110
|
25
|
2.8
4
5.2
|
0.78
1.11
1.44
|
16
15
13.5
|
34
42
41
|
2900
|
0.55
|
2.3
|
|
25-125
|
25
|
2.8
4
5.2
|
0.78
1.11
1.44
|
20.6
20
18
|
28
36
35
|
2900
|
0.75
|
2.3
|
|
25-125A
|
25
|
2.5
3.6
4.6
|
0.69
1.0
1.28
|
17
16
14.4
|
35
|
2900
|
0.55
|
2.3
|
|
25-160
|
25
|
2.8
4
5.2
|
0.78
1.11
1.44
|
33
32
30
|
24
32
33
|
2900
|
1.5
|
2.3
|
|
25-160A
|
25
|
2.6
3.7
4.9
|
0.12
1.03
1.36
|
29
28
26
|
31
|
2900
|
1.1
|
2.3
|
|
型號
|
口徑
|
流量
|
揚程
|
效率
|
轉速
|
電機功率
|
必需汽蝕余量
|
|
mm
|
m3/h
|
L/S
|
m
|
%
|
r/min
|
KW
|
（NPSH）r
|
|
32-100(I)
|
32
|
4.4
6.3
8.3
|
1.22
1.75
2.32
|
13.2
12.5
11.3
|
48
54
53
|
2900
|
0.75
|
2.0
|
|
32-125
|
32
|
3.5
5
6.5
|
0.97
0.39
1.8
|
22
20
18
|
40
44
42
|
2900
|
0.75
|
2.3
|
|
32-125A
|
32
|
3.1
4.5
5.8
|
0.86
1.25
1.61
|
17.6
16
14.4
|
43
|
2900
|
0.55
|
2.3
|
|
32-160(I)
|
32
|
4.4
6.3
8.3
|
1.22
1.75
2.32
|
33.2
32
30.2
|
34
40
42
|
2900
|
2.2
|
2.0
|
|
32-200(I)
|
32
|
4.4
6.3
8.3
|
1.22
1.75
2.32
|
50.5
50
48
|
26
33
35
|
2900
|
4
|
2.0
|
|
32-200A
|
32
|
2.8
4
5.2
|
0.78
1.11
1.44
|
44.6
44
42.7
|
34
40
42
|
2900
|
2.2
|
2.0
|
|
型號
|
口徑
|
流量
|
揚程
|
效率
|
轉速
|
電機功率
|
必需汽蝕余量
|
|
mm
|
m3/h
|
L/S
|
m
|
%
|
r/min
|
KW
|
（NPSH）r
|
|
40-100
|
40
|
4.4
6.3
8.3
|
1.22
1.75
2.31
|
13.2
12.5
11.3
|
48
54
53
|
2900
|
0.55
|
2.3
|
|
40-100A
|
40
|
3.9
5.6
7.4
|
1.08
1.56
2.06
|
10.6
10
9
|
52
|
2900
|
0.37
|
2.3
|
|
40-125
|
40
|
4.4
6.3
8.3
|
1.22
1.75
2.31
|
21
20
18
|
41
46
43
|
2900
|
1.1
|
2.3
|
|
40-125A
|
40
|
3.9
5.6
7.4
|
1.08
1.56
2.06
|
17.6
16
14.4
|
40
45
41
|
2900
|
0.75
|
2.3
|
|
40-160
|
40
|
4.4
6.3
8.3
|
1.22
1.75
2.31
|
33
32
30
|
35
40
40
|
2900
|
2.2
|
2.3
|
|
40-160A
|
40
|
4.1
5.9
7.8
|
1.14
1.64
2.17
|
29
28
26.3
|
34
39
39
|
2900
|
1.5
|
2.3
|
|
40-160B
|
40
|
3.8
5.5
7.2
|
1.06
1.53
2.0
|
25.5
24
22.5
|
34
38
37
|
2900
|
1.1
|
2.3
|
|
40-200
|
40
|
4.4
6.3
8.3
|
1.22
1.75
2.31
|
51
50
48
|
26
33
32
|
2900
|
4
|
2.3
|
|
40-200A
|
40
|
4.1
5.9
7.8
|
1.14
1.64
2.17
|
45
44
42
|
26
31
30
|
2900
|
3
|
2.3
|
|
40-200B
|
40
|
3.7
5.3
7.0
|
1.03
1.47
1.94
|
38
36
34.5
|
29
|
2900
|
2.2
|
2.3
|
|
40-250
|
40
|
4.4
6.3
8.3
|
1.22
1.75
2.31
|
82
80
74
|
24
28
28
|
2900
|
7.5
|
2.3
|
|
40-250A
|
40
|
4.1
5.9
7.8
|
1.14
1.64
2.17
|
72
70
65
|
24
28
27
|
2900
|
5.5
|
2.3
|
|
40-250B
|
40
|
3.8
5.5
7.0
|
1.06
1.53
1.94
|
61.5
60
56
|
23
27
26
|
2900
|
4
|
2.3
|
|
型號
|
口徑
|
流量
|
揚程
|
效率
|
轉速
|
電機功率
|
必需汽蝕余量
|
|
mm
|
m3/h
|
L/S
|
m
|
%
|
r/min
|
KW
|
（NPSH）r
|
|
40-100(I)
|
40
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
13.2
12.5
11.3
|
55
62
60
|
2900
|
1.1
|
2.3
|
|
40-100(I)A
|
40
|
8
11
14.5
|
2.22
3.05
4.03
|
10.6
10
9
|
60
|
2900
|
0.75
|
2.3
|
|
40-125(I)
|
40
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
21.2
20
17.8
|
49
58
57
|
2900
|
1.5
|
2.3
|
|
40-125(I)A
|
40
|
8
11
14.5
|
2.22
3.05
4.03
|
17
16
14
|
57
|
2900
|
1.1
|
2.3
|
|
40-160(I)
|
40
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
33
32
30
|
45
52
51
|
2900
|
3
|
2.3
|
|
40-160(I)A
|
40
|
8.2
11.7
15.2
|
2.28
3.25
4.22
|
29
28
26
|
44
51
50
|
2900
|
2.2
|
2.3
|
|
40-160(I)B
|
40
|
7.3
10.4
13.5
|
2.38
2.89
3.75
|
23
22
20.5
|
50
|
2900
|
1.5
|
2.3
|
|
40-200(I)
|
40
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
51.2
50
48
|
38
46
46
|
2900
|
5.5
|
2.3
|
|
40-200(I)A
|
40
|
8.3
11.7
15.3
|
2.31
3.25
4.25
|
45.0
44
42
|
37
45
45
|
2900
|
4
|
2.3
|
|
40-200(I)B
|
40
|
7.5
10.6
13.8
|
2.08
2.94
3.83
|
37
36
34
|
44
|
2900
|
3
|
2.3
|
|
40-250(I)
|
40
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
81.2
80
77.5
|
31
38
40
|
2900
|
11
|
2.3
|
|
40-250(I)A
|
40
|
8.2
11.6
15.2
|
2.28
3.22
4.22
|
71.0
70
68
|
38
|
2900
|
7.5
|
2.3
|
|
40-250(I)B
|
40
|
7.6
10.8
14
|
2.11
3.0
3.89
|
61.4
60
58
|
37
|
2900
|
7.5
|
2.3
|
|
40-250(I)C
|
40
|
7.1
10.0
13.1
|
1.97
2.78
3.64
|
53.2
52
50.4
|
36
|
2900
|
5.5
|
2.3
|
|
型號
|
口徑
|
流量
|
揚程
|
效率
|
轉速
|
電機功率
|
必需汽蝕余量
|
|
mm
|
m3/h
|
L/S
|
m
|
%
|
r/min
|
KW
|
（NPSH）r
|
|
50-100
|
50
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
13.6
12.5
11.3
|
55
62
60
|
2900
|
1.1
|
2.3
|
|
50-100A
|
50
|
8
11
14.5
|
2.22
3.05
4.03
|
11
10
9
|
60
|
2900
|
0.75
|
2.3
|
|
50-125
|
50
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
21.5
20
17.8
|
49
58
57
|
2900
|
1.5
|
2.3
|
|
50-125A
|
50
|
8
11
14.5
|
2.22
3.05
4.03
|
17
16
14
|
57
|
2900
|
1.1
|
2.3
|
|
50-160
|
50
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
33
32
30
|
45
52
51
|
2900
|
3
|
2.3
|
|
50-160A
|
50
|
8.2
11.7
15.2
|
2.28
3.25
4.22
|
29
28
26
|
44
51
50
|
2900
|
2.2
|
2.3
|
|
50-160B
|
50
|
7.3
10.4
13.5
|
2.38
2.89
3.75
|
23
22
20.5
|
50
|
2900
|
1.5
|
2.3
|
|
50-200
|
50
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
52
50
48
|
38
46
46
|
2900
|
5.5
|
2.3
|
|
50-200A
|
50
|
8.3
11.7
15.3
|
2.31
3.25
4.25
|
45.8
44
42
|
37
45
45
|
2900
|
4
|
2.3
|
|
50-200B
|
50
|
7.5
10.6
13.8
|
2.08
2.94
3.83
|
37
36
34
|
44
|
2900
|
3
|
2.3
|
|
50-250
|
50
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
82
80
77.5
|
29
38
40
|
2900
|
11
|
2.3
|
|
50-250A
|
50
|
8.2
11.6
15.2
|
2.28
3.22
4.22
|
71.5
70
68
|
38
|
2900
|
7.5
|
2.3
|
|
50-250B
|
50
|
7.6
10.8
14
|
2.11
3.0
3.89
|
61.4
60
58
|
37
|
2900
|
7.5
|
2.3
|
|
50-250C
|
50
|
7.1
10.0
13.1
|
1.97
2.78
3.64
|
53.2
52
50.4
|
36
|
2900
|
5.5
|
2.3
|
|
型號
|
口徑
|
流量
|
揚程
|
效率
|
轉速
|
電機功率
|
必需汽蝕余量
|
|
mm
|
m3/h
|
L/S
|
m
|
%
|
r/min
|
KW
|
（NPSH）r
|
|
50-100(I)
|
50
|
17.5
25
32.5
|
4.86
6.94
9.03
|
13.7
12.5
10.5
|
67
69
69
|
2900
|
1.5
|
2.5
|
|
50-100(I)A
|
50
|
15.6
22.3
29
|
4.3
6.19
8.1
|
11
10
8.4
|
65
67
68
|
2900
|
1.1
|
2.5
|
|
50-125(I)
|
50
|
17.5
25
32.5
|
4.86
6.94
9.03
|
21.5
20
18
|
60
68
67
|
2900
|
3
|
2.5
|
|
50-125(I)A
|
50
|
15.6
22.3
29
|
4.33
6.19
8.1
|
17
16
13.6
|
58
66
65
|
2900
|
2.2
|
2.5
|
|
50-160(I)
|
50
|
17.5
25
32.5
|
4.68
6.94
9.03
|
34.4
32
27.5
|
54
63
60
|
2900
|
4
|
2.5
|
|
50-160(I)A
|
50
|
16.4
23.4
30.4
|
4.56
6.5
8.44
|
30
28
24
|
54
62
59
|
2900
|
4
|
2.5
|
|
50-160(I)B
|
50
|
15.0
21.6
28
|
4.17
6.0
7.78
|
26
24
20.6
|
58
|
2900
|
3
|
2.5
|
|
50-200(I)
|
50
|
17.5
25
32.5
|
4.86
6.94
9.03
|
52.7
50
45.5
|
49
58
59
|
2900
|
7.5
|
2.5
|
|
50-200(I)A
|
50
|
16.4
23.5
30.5
|
4.56
6.53
8.47
|
46.4
44
40
|
48
57
58
|
2900
|
7.5
|
2.5
|
|
50-200(I)B
|
50
|
15.2
21.8
28.3
|
4.22
6.06
7.86
|
40
38
34.5
|
55
|
2900
|
5.5
|
2.5
|
|
50-250(I)
|
50
|
17.5
25
32.5
|
4.86
6.94
9.03
|
82
80
76.5
|
39
50
52
|
2900
|
15
|
2.5
|
|
50-250(I)A
|
50
|
16.4
23.4
30.5
|
4.56
6.5
8.47
|
71.5
70
67
|
39
50
52
|
2900
|
11
|
2.5
|
|
50-250(I)B
|
50
|
15
21.6
28
|
4.17
6.0
7.78
|
61
60
57.4
|
38
49
54
|
2900
|
11
|
2.5
|
|
50-315(I)
|
50
|
17.5
25
32.5
|
4.86
6.94
9.03
|
128
125
122
|
30
40
44
|
2900
|
30
|
2.5
|
|
50-315(I)A
|
50
|
16.6
23.7
31
|
4.61
6.58
8.6
|
115
113
110
|
30
40
44
|
2900
|
22
|
2.5
|
|
50-315(I)B
|
50
|
15.7
22.5
29.2
|
4.36
6.25
8.0
|
103
101
98
|
39
|
2900
|
18.5
|
2.5
|
|
50-315(I)C
|
50
|
14.4
20.6
26.8
|
4.0
5.72
7.44
|
86
85
83
|
38
|
2900
|
15
|
2.5
|
|
型號
|
口徑
|
流量
|
揚程
|
效率
|
轉速
|
電機功率
|
必需汽蝕余量
|
|
m3/h
|
L/S
|
m
|
%
|
r/min
|
KW
|
（NPSH）r
|
|
65-100
|
65
|
17.5
25
32.5
|
4.86
6.94
9.03
|
13.7
12.5
10.5
|
67
69
69
|
2900
|
1.5
|
2.5
|
|
65-100A
|
65
|
15.6
22.3
29
|
4.3
6.19
8.1
|
11
10
8.4
|
65
67
68
|
2900
|
1.1
|
2.5
|
|
65-125
|
65
|
17.5
25
32.5
|
4.86
6.94
9.03
|
21.5
20
18
|
60
68
67
|
2900
|
3
|
2.5
|
|
65-125A
|
65
|
15.6
22.3
29
|
4.33
6.19
8.1
|
17
16
14.4
|
58
66
65
|
2900
|
2.2
|
2.5
|
|
65-160
|
65
|
17.5
25
32.5
|
4.86
6.94
9.03
|
34.4
32
27.5
|
54
63
60
|
2900
|
4
|
2.5
|
|
65-160A
|
65
|
16.4
23.4
30.4
|
4.56
6.5
8.44
|
30
28
24
|
54
62
59
|
2900
|
4
|
2.5
|
|
65-160B
|
65
|
15.0
21.6
28
|
4.17
6.0
7.78
|
26
24
20.6
|
58
|
2900
|
3
|
2.5
|
|
65-200
|
65
|
17.5
25
32.5
|
4.86
6.94
9.03
|
52.7
50
45.5
|
49
58
59
|
2900
|
7.5
|
2.5
|
|
65-200A
|
65
|
16.4
23.5
30.5
|
4.56
6.53
8.47
|
46.4
44
40
|
48
57
58
|
2900
|
7.5
|
2.5
|
|
65-200B
|
65
|
15.2
21.8
28.3
|
4.22
6.06
7.86
|
40
38
34.5
|
55
|
2900
|
5.5
|
2.5
|
|
65-250
|
65
|
17.5
25
32.5
|
4.86
6.94
9.03
|
82
80
76.5
|
39
50
52
|
2900
|
15
|
2.5
|
|
65-250A
|
65
|
16.4
23.4
30.5
|
4.56
6.5
8.47
|
71.5
70
67
|
39
50
52
|
2900
|
11
|
2.5
|
|
65-250B
|
65
|
15
21.6
28
|
4.17
6.0
7.78
|
61
60
57.4
|
38
49
54
|
2900
|
11
|
2.5
|
|
65-315
|
65
|
17.5
25
32.5
|
4.86
6.94
9.03
|
127
125
122
|
32
40
44
|
2900
|
30
|
2.5
|
|
65-315A
|
65
|
16.6
23.7
31
|
4.61
6.58
8.6
|
115
113
110
|
32
40
44
|
2900
|
22
|
2.5
|
|
65-315B
|
65
|
15.7
22.5
29.2
|
4.36
6.25
8.0
|
103
101
98
|
39
|
2900
|
18.5
|
2.5
|
|
65-315C
|
65
|
14.4
20.6
26.8
|
4.0
5.72
7.44
|
86
85
83
|
38
|
2900
|
15
|
2.5
|
|
型號
|
口徑
|
流量
|
揚程
|
效率
|
轉速
|
電機功率
|
必需汽蝕余量
|
|
mm
|
m3/h
|
L/S
|
m
|
%
|
r/min
|
KW
|
（NPSH）r
|
|
65-100(I)
|
65
|
35
50
65
|
9.72
13.9
18.1
|
13.8
12.5
10
|
67
73
70
|
2900
|
3
|
3.0
|
|
65-100(I)A
|
65
|
31.3
44.7
58
|
8.7
12.4
16.1
|
11
10
8
|
66
72
69
|
2900
|
2.2
|
3.0
|
|
65-125(I)
|
65
|
35
50
65
|
9.72
13.9
18.1
|
22
20
17
|
67
72.5
70
|
2900
|
5.5
|
3.0
|
|
65-125(I)A
|
65
|
31.3
44.7
58
|
8.7
12.5
16.1
|
17.5
16
13.6
|
66
71
69
|
2900
|
4
|
3.0
|
|
65-160(I)
|
65
|
35
50
65
|
9.72
13.9
18.1
|
35
32
28
|
63
71
70
|
2900
|
7.5
|
3.0
|
|
65-160(I)A
|
65
|
32.7
46.7
61
|
9.1
13.0
16.9
|
30.6
28
24
|
62
70
69
|
2900
|
7.5
|
3.0
|
|
65-160(I)B
|
65
|
30.3
43.3
56.3
|
8.4
12.0
15.6
|
26
24
21
|
69
|
2900
|
5.5
|
3.0
|
|
65-200(I)
|
65
|
35
50
65
|
9.72
13.9
18.1
|
53.5
50
46
|
55
67
68
|
2900
|
15
|
3.0
|
|
65-200(I)A
|
65
|
32.8
47
61
|
9.1
13.1
16.9
|
47
44
40
|
54
66
67
|
2900
|
11
|
3.0
|
|
65-200(I)B
|
65
|
30.5
43.5
56.6
|
8.5
12.1
15.7
|
40.6
38
33.4
|
65
|
2900
|
7.5
|
3.0
|
|
65-250(I)
|
65
|
35
50
65
|
9.72
13.9
18.1
|
83
80
72
|
52
59
60
|
2900
|
22
|
3.0
|
|
65-250(I)A
|
65
|
32.5
46.7
61
|
9.0
13.0
16.9
|
73
70
63
|
52
59
60
|
2900
|
18.5
|
3.0
|
|
65-250(I)B
|
65
|
30
43.3
56
|
8.3
12.0
15.6
|
62
60
54
|
58
|
2900
|
15
|
3.0
|
|
65-315(I)
|
65
|
35
50
65
|
9.72
13.9
18.1
|
128
125
121
|
44
54
57
|
2900
|
37
|
3.0
|
|
65-315(I)A
|
65
|
32.5
46.5
60.5
|
9.0
12.9
16.8
|
112.6
110
106.4
|
43
54
57
|
2900
|
30
|
3.0
|
|
65-315(I)B
|
65
|
31
44.5
58
|
8.6
12.4
16.1
|
102.5
100
98
|
53
|
2900
|
30
|
3.0
|
|
65-315(I)C
|
65
|
29
41
53.6
|
8.1
11.4
14.9
|
87
85
83
|
51
|
2900
|
22
|
3.0
|
|
型號
|
口徑
|
流量
|
揚程
|
效率
|
轉速
|
電機功率
|
必需汽蝕余量
|
|
mm
|
m3/h
|
L/S
|
m
|
%
|
r/min
|
KW
|
（NPSH）r
|
|
80-100
|
80
|
35
50
65
|
9.72
13.9
18.1
|
13.8
12.5
10
|
67
73
70
|
2900
|
3
|
3.0
|
|
80-100A
|
80
|
31.3
44.7
58
|
8.7
12.5
16.1
|
11
10
8
|
66
72
69
|
2900
|
2.2
|
3.0
|
|
80-125
|
80
|
35
50
65
|
9.72
13.9
18.1
|
22
20
17
|
67
72.5
70
|
2900
|
5.5
|
3.0
|
|
80-125A
|
80
|
31.3
45
58
|
8.7
12.5
16.1
|
17.5
16
13.6
|
66
71
69
|
2900
|
4
|
3.0
|
|
80-160
|
80
|
35
50
65
|
9.72
13.9
18.1
|
35
32
28
|
63
71
70
|
2900
|
7.5
|
3.0
|
|
80-160A
|
80
|
32.7
46.7
61
|
9.1
13.0
16.9
|
30.6
28
24
|
62
70
69
|
2900
|
7.5
|
3.0
|
|
80-160B
|
80
|
30.3
43.3
56.3
|
8.4
12.0
15.6
|
26
24
21
|
69
|
2900
|
5.5
|
3.0
|
|
80-200
|
80
|
35
50
65
|
9.72
13.9
18.1
|
53.5
50
46
|
55
67
68
|
2900
|
15
|
3.0
|
|
80-200A
|
80
|
32.8
47
61
|
9.1
13.1
16.9
|
47
44
40
|
54
66
67
|
2900
|
11
|
3.0
|
|
80-200B
|
80
|
30.5
43.5
56.6
|
8.5
12.1
15.7
|
40.6
38
33.4
|
65
|
2900
|
7.5
|
3.0
|
|
80-250
|
80
|
35
50
65
|
9.72
13.9
18.1
|
83
80
72
|
52
59
60
|
2900
|
22
|
3.0
|
|
80-250A
|
80
|
32.5
46.7
61
|
9.0
13.0
16.9
|
73
70
63
|
52
59
60
|
2900
|
18.5
|
3.0
|
|
80-250B
|
80
|
30
43.3
56
|
8.3
12.0
15.6
|
62
60
54
|
58
|
2900
|
15
|
3.0
|
|
80-315
|
80
|
35
50
65
|
9.72
13.9
18.1
|
128
125
122
|
43
54
57
|
2900
|
37
|
3.0
|
|
80-315A
|
80
|
32.5
46.5
60.5
|
9.0
12.9
16.8
|
112.6
110
107.4
|
43
54
57
|
2900
|
30
|
3.0
|
|
80-315B
|
80
|
31
44.5
58
|
8.6
12.4
16.1
|
102.5
100
98
|
53
|
2900
|
30
|
3.0
|
|
80-315C
|
80
|
29
41
53.6
|
8.1
11.4
14.9
|
98
85
83
|
51
|
2900
|
22
|
3.0
|
|
80-350
|
80
|
35
50
65
|
9.72
13.9
18.1
|
146
150
142
|
55
66
67
|
2900
|
55
|
3.0
|
|
80-350A
|
80
|
31
44.5
58
|
8.6
12.4
16.1
|
138.4
142
134.8
|
65
|
2900
|
45
|
3.0
|
|
80-350B
|
80
|
29
41
53.6
|
8.1
11.4
14.9
|
131.4
135
127.8
|
63
|
2900
|
37
|
3.0
|
|
型號
|
口徑
|
流量
|
揚程
|
效率
|
轉速
|
電機功率
|
必需汽蝕余量
|
|
mm
|
m3/h
|
L/S
|
m
|
%
|
r/min
|
KW
|
（NPSH）r
|
|
80-100(I)
|
80
|
70
100
130
|
19.4
27.8
36.1
|
13.6
12.5
11
|
66
76
75
|
2900
|
5.5
|
4.5
|
|
80-100(I)A
|
80
|
62.6
89
116
|
17.4
24.7
32.2
|
11
10
8.8
|
64
74
74
|
2900
|
4
|
4.5
|
|
80-125(I)
|
80
|
70
100
130
|
19.4
27.8
36.1
|
23.5
20
14
|
70
76
65
|
2900
|
11
|
4.5
|
|
80-125(I)A
|
80
|
62.6
89
116
|
17.4
24.7
32.2
|
19
16
11
|
68
74
65
|
2900
|
7.5
|
4.5
|
|
80-160(I)
|
80
|
70
100
130
|
19.4
27.8
36.1
|
36.5
32
24
|
70
76
65
|
2900
|
15
|
4.5
|
|
80-160(I)A
|
80
|
65.4
93.5
121.6
|
18.2
26.0
33.8
|
32
28
21
|
68
74
67
|
2900
|
11
|
4.5
|
|
80-160(I)B
|
80
|
60.6
86.6
112.5
|
16.8
24.1
31.3
|
72
24
18
|
72
|
2900
|
11
|
4.5
|
|
80-200(I)
|
80
|
70
100
130
|
19.4
27.8
36.1
|
54
50
42
|
65
74
73
|
2900
|
22
|
4.0
|
|
80-200(I)A
|
80
|
65.4
93.5
121.6
|
18.2
26.0
33.8
|
47.5
44
37
|
64
73
72
|
2900
|
18.5
|
4.0
|
|
80-200(I)B
|
80
|
61
87
113
|
16.9
24.2
31.4
|
41
38
32
|
71
|
2900
|
15
|
4.0
|
|
80-250(I)
|
80
|
70
100
130
|
19.4
27.8
36.1
|
87
80
68
|
62
69
68
|
2900
|
37
|
4.0
|
|
80-250(I)A
|
80
|
65.4
93.5
121.6
|
18.2
26.0
33.8
|
76
70
59.5
|
61
68
67
|
2900
|
30
|
4.0
|
|
80-250(I)B
|
80
|
61
87
113
|
16.9
24.2
31.4
|
65
60
51
|
66
|
2900
|
30
|
4.0
|
|
80-315(I)
|
80
|
70
100
130
|
19.4
27.8
36.1
|
132
125
114
|
55
66
67
|
2900
|
75
|
4.0
|
|
80-315(I)A
|
80
|
66.5
95
123.6
|
18.5
26.4
34.3
|
119
113
103
|
55
66
67
|
2900
|
55
|
4.0
|
|
80-315(I)B
|
80
|
63
90
117
|
17.5
25
32.5
|
106.6
101
92
|
65
|
2900
|
45
|
4.0
|
|
80-315(I)C
|
80
|
58
82
107
|
16.1
22.8
29.7
|
90
85
76
|
63
|
2900
|
37
|
4.0
|
|
型號
|
口徑
|
流量
|
揚程
|
效率
|
轉速
|
電機功率
|
必需汽蝕余量
|
|
mm
|
m3/h
|
L/S
|
m
|
%
|
r/min
|
KW
|
（NPSH）r
|
|
100-100
|
100
|
70
100
130
|
19.4
27.8
36.1
|
13.6
12.5
11
|
66
76
75
|
2900
|
5.5
|
4.5
|
|
100-100A
|
100
|
62.6
89
116
|
17.4
47
32.2
|
11
10
8.8
|
64
74
74
|
2900
|
4
|
4.5
|
|
100-125
|
100
|
70
100
130
|
19.4
27.8
36.1
|
23.5
20
14
|
70
76
65
|
2900
|
11
|
4.5
|
|
100-125A
|
100
|
62.6
89
116
|
17.4
24.7
32.2
|
19
16
11
|
68
74
63
|
2900
|
7.5
|
4.5
|
|
100-160
|
100
|
70
100
130
|
19.4
27.8
36.1
|
36.5
32
24
|
70
76
65
|
2900
|
15
|
4.5
|
|
100-160A
|
100
|
65.4
93.5
121.6
|
18.2
26.0
33.8
|
32
28
21
|
68
74
67
|
2900
|
11
|
4.5
|
|
100-160B
|
100
|
60.6
86.6
112.5
|
16.8
24.1
31.3
|
27
24
18
|
72
|
2900
|
11
|
4.5
|
|
100-200
|
100
|
70
100
130
|
19.4
27.8
36.1
|
54
50
42
|
65
74
73
|
2900
|
22
|
4.0
|
|
100-200A
|
100
|
65.4
93.5
121.6
|
18.2
26.0
33.8
|
47.5
44
37
|
64
73
72
|
2900
|
18.5
|
4.0
|
|
100-200B
|
100
|
61
87
113
|
16.9
24.2
31.4
|
41
38
32
|
71
|
2900
|
15
|
4.0
|
|
100-250
|
100
|
70
100
130
|
19.4
27.8
36.1
|
37
80
68
|
62
69
68
|
2900
|
37
|
4.0
|
|
100-250A
|
100
|
65.4
93.5
121.6
|
18.2
26.0
33.8
|
76
70
59.5
|
61
68
67
|
2900
|
30
|
4.0
|
|
100-250B
|
100
|
61
87
113
|
16.9
24.2
31.4
|
65
60
51
|
66
|
2900
|
30
|
4.0
|
|
100-315
|
100
|
70
100
130
|
19.4
27.8
36.1
|
132
125
114
|
55
66
67
|
2900
|
75
|
4.0
|
|
100-315A
|
100
|
66.5
95
123.6
|
18.5
26.4
34.3
|
119
113
103
|
65
66
67
|
2900
|
55
|
4.0
|
|
100-315B
|
100
|
63
90
117
|
17.5
25
32.5
|
106.6
101
92
|
65
|
2900
|
45
|
4.0
|
|
100-315C
|
100
|
58
82
107
|
16.1
22.8
29.7
|
90
85
76
|
63
|
2900
|
37
|
4.0
|
|
型號
|
口徑
|
流量
|
揚程
|
效率
|
轉速
|
電機功率
|
必需汽蝕余量
|
|
mm
|
m3/h
|
L/S
|
m
|
%
|
r/min
|
KW
|
（NPSH）r
|
|
100-100(I)
|
100
|
96
160
192
|
26.7
44.4
53.3
|
14
12.5
10
|
64
73
70
|
2900
|
11
|
4.5
|
|
100-125(I)
|
100
|
96
160
192
|
26.7
44.4
53.3
|
24
20
14
|
62
74
69
|
2900
|
15
|
4.5
|
|
100-125(I)A
|
100
|
84
140
168
|
23.3
39
46.7
|
20
17
12
|
64
72
68
|
2900
|
11
|
4.5
|
|
100-160(I)
|
100
|
96
160
192
|
26.7
44.4
53.3
|
36
32
27
|
69
79
75
|
2900
|
22
|
5.6
|
|
100-160(I)A
|
100
|
84
140
168
|
23.3
39
46.7
|
32
28
23.5
|
66
76
72
|
2900
|
18.5
|
5.0
|
|
100-200(I)
|
100
|
96
160
192
|
26.7
44.4
53.3
|
53
50
45
|
69
79
78
|
2900
|
37
|
5.2
|
|
100-200(I)A
|
100
|
84
140
168
|
23.3
39
46.7
|
48
45
40
|
64
74
73
|
2900
|
30
|
4.5
|
|
100-200(I)B
|
100
|
60
100
120
|
16.7
27.8
33.3
|
43
40
36
|
72
|
2900
|
22
|
4.5
|
|
100-250(I)
|
100
|
96
160
192
|
26.7
44.4
53.3
|
83
80
72
|
65
77
74
|
2900
|
55
|
4.8
|
|
100-250(I)A
|
100
|
84
140
168
|
23.3
39
46.7
|
75
72
65
|
60
72
69
|
2900
|
45
|
4.5
|
|
100-250(I)B
|
100
|
60
100
120
|
16.7
27.8
33.3
|
68
65
58
|
70
|
2900
|
37
|
4.5
|
|
100-350
|
100
|
60
100
120
|
16.7
27.8
33.3
|
153.6
150
142
|
72
57
74
|
2900
|
90
|
4.0
|
|
100-350A
|
100
|
61
87
113
|
16.9
24.2
31.4
|
145.6
142
134
|
75
|
2900
|
75
|
4.0
|
|
100-350B
|
100
|
58
82
107
|
16.1
22.8
29.7
|
138.6
135
127
|
75
|
2900
|
55
|
4.0
|
|
型號
|
口徑
|
流量
|
揚程
|
效率
|
轉速
|
電機功率
|
必需汽蝕余量
|
|
mm
|
m3/h
|
L/S
|
m
|
%
|
r/min
|
KW
|
（NPSH）r
|
|
125-100
|
125
|
96
160
192
|
26.7
44.4
53.3
|
13
12.5
12
|
82
|
2900
|
11
|
4.0
|
|
125-100A
|
125
|
86
143
172
|
23.9
39.7
47.8
|
10.4
10
9.6
|
77
|
2900
|
7.5
|
4.0
|
|
125-125
|
125
|
96
160
192
|
26.7
44.4
53.3
|
22.6
20
17
|
80
|
2900
|
15
|
4.0
|
|
125-125A
|
125
|
86
143
172
|
23.9
39.7
47.8
|
18
16
13.6
|
77
|
2900
|
11
|
4.0
|
|
125-160
|
125
|
96
160
192
|
26.7
44.4
53.3
|
36
32
28
|
78
|
2900
|
22
|
4.0
|
|
125-160A
|
125
|
90
150
180
|
25
41.7
50
|
31.5
28
24.5
|
76
|
2900
|
18.5
|
4.0
|
|
125-160B
|
125
|
83
138
166
|
21.7
38.3
46.1
|
27
24
21
|
73
|
2900
|
15
|
4.0
|
|
125-200
|
125
|
96
160
192
|
26.7
44.4
53.3
|
55
50
46
|
77
|
2900
|
37
|
5.5
|
|
125-200A
|
125
|
90
150
180
|
25
41.7
50
|
48.4
44
40.5
|
76
|
2900
|
30
|
5.5
|
|
125-200B
|
125
|
83
138
166
|
21.7
38.3
46.1
|
41.3
37.5
34.5
|
75
|
2900
|
22
|
5.5
|
|
125-250
|
125
|
96
160
192
|
26.7
44.4
53.3
|
87
80
73
|
75
|
2900
|
55
|
5.0
|
|
125-250A
|
125
|
90
150
180
|
25
41.7
50
|
76
70
84
|
74
|
2900
|
45
|
5.5
|
|
125-250B
|
125
|
83
138
166
|
21.7
38.3
46.1
|
65
60
55
|
73
|
2900
|
37
|
5.5
|
|
125-315
|
125
|
96
160
192
|
26.7
44.7
53.3
|
133
125
119
|
70
|
2900
|
90
|
5.0
|
|
125-315A
|
125
|
90
150
180
|
25
41.7
50
|
117
110
104.6
|
70
|
2900
|
75
|
5.0
|
|
125-315B
|
125
|
86
143
172
|
23.9
39.7
47.8
|
106.4
100
95.2
|
69
|
2900
|
75
|
5.0
|
|
125-315C
|
125
|
80.5
134
161
|
22.4
37.2
44.7
|
96
88
86
|
67
|
2900
|
55
|
5.0
|
|
型號
|
口徑
|
流量
|
揚程
|
效率
|
轉速
|
電機功率
|
必需汽蝕余量
|
|
mm
|
m3/h
|
L/S
|
m
|
%
|
r/min
|
KW
|
（NPSH）r
|
|
150-125
|
150
|
96
160
192
|
26.7
44.4
53.3
|
22.6
24
17
|
66
76
76
|
2900
|
11
|
4.0
|
|
150-125A
|
150
|
90
150
180
|
25
41.7
50
|
18
16
13.6
|
77
|
2900
|
7.5
|
4.0
|
|
150-160
|
150
|
96
160
192
|
26.7
44.4
53.3
|
36
32
27
|
75
|
2900
|
22
|
4.0
|
|
150-160A
|
150
|
90
150
180
|
25
41.7
50
|
32
28
23.5
|
76
|
2900
|
18.5
|
4.0
|
|
150-160B
|
150
|
84
140
168
|
23.3
39
46.7
|
27
24
21
|
73
|
2900
|
15
|
4.0
|
|
150-200
|
150
|
140
200
260
|
38.9
55.6
72.2
|
13.8
12.5
10.6
|
68
78
78
|
1450
|
15
|
3.0
|
|
150-200A
|
150
|
125
176
232.5
|
34.7
49.7
64.6
|
11
10
8.5
|
66
76
76
|
1450
|
11
|
3.0
|
|
150-200B
|
150
|
84
140
168
|
23.3
39
46.7
|
41
38
34
|
75
|
2900
|
22
|
4.0
|
|
150-250
|
150
|
140
200
260
|
38.9
55.6
72.2
|
21.8
20
17
|
73
79
77
|
1450
|
18.5
|
3.0
|
|
150-250A
|
150
|
129
184.4
240
|
35.8
51.2
66.7
|
18.5
17
14.4
|
72
78
76
|
1450
|
15
|
3.0
|
|
150-250B
|
150
|
117
167
217.5
|
32.5
46.4
60.4
|
15.2
14
12
|
76
|
1450
|
11
|
3.0
|
|
150-315
|
150
|
140
200
260
|
38.9
55.6
72.2
|
33.8
32
28
|
70
78
73
|
1450
|
30
|
2.5
|
|
150-315A
|
150
|
131
187
243
|
36.4
51.9
67.5
|
29.5
28
24.5
|
69
77
77
|
1450
|
22
|
3.5
|
|
150-315B
|
150
|
121
173
225
|
33.5
48.1
62.5
|
25
24
21
|
76
|
1450
|
18.5
|
3.5
|
|
150-350
|
150
|
96
160
192
|
26.7
44.4
53.3
|
153.6
150
142.8
|
80
|
2900
|
110
|
5.5
|
|
150-350A
|
150
|
90
150
180
|
25
41.7
50
|
145.6
142
134.8
|
70
|
2900
|
90
|
5.2
|
|
150-350B
|
150
|
84
140
168
|
23.3
39
46.7
|
138.6
135
127.8
|
65
76
74
|
2900
|
75
|
5.5
|
|
150-400
|
150
|
140
200
260
|
38.9
55.6
72.2
|
53
50
44
|
68
75
71
|
1450
|
45
|
3.5
|
|
150-400A
|
150
|
131
187
243
|
36.4
51.9
67.5
|
46.6
44
38.3
|
67
74
70
|
1450
|
37
|
3.5
|
|
150-400B
|
150
|
122
174
226.5
|
33.9
48.3
62.9
|
40
38
33
|
73
|
1450
|
30
|
3.5
|
|
150-400C
|
150
|
112
160
208
|
31.1
44.4
57.8
|
34
32
28
|
71
|
1450
|
22
|
3.5
|
|
型號
|
口徑
|
流量
|
揚程
|
效率
|
轉速
|
電機功率
|
必需汽蝕余量
|
|
mm
|
m3/h
|
L/S
|
m
|
%
|
r/min
|
KW
|
（NPSH）r
|
|
150-250(I)
|
150
|
120
200
240
|
33.3
55.6
66.7
|
87
80
72
|
65
76
74
|
2900
|
75
|
4.5
|
|
150-250(I)A
|
150
|
112
187
224
|
31.1
51.9
62.2
|
76
70
63
|
64
75
73
|
2900
|
55
|
4.5
|
|
150-250(I)B
|
150
|
104
173
208
|
28.9
48.1
57.8
|
65
60
54
|
63
74
72
|
2900
|
45
|
4.5
|
|
150-315(I)
|
150
|
120
200
240
|
33.3
55.6
66.7
|
133
125
120
|
58
73
75
|
2900
|
110
|
4.5
|
|
150-315(I)A
|
150
|
112
187
224
|
31.1
51.9
62.2
|
116
110
105
|
57
72
74
|
2900
|
90
|
4.5
|
|
150-315(I)B
|
150
|
104
173
208
|
28.9
48.1
57.8
|
100
95
91
|
55
70
72
|
2900
|
75
|
4.5
|
|
型號
|
口徑
|
流量
|
揚程
|
效率
|
轉速
|
電機功率
|
必需汽蝕余量
|
|
mm
|
m3/h
|
L/S
|
m
|
%
|
r/min
|
KW
|
（NPSH）r
|
|
200-200
|
200
|
140
200
260
|
38.9
55.6
72.2
|
13.8
12.5
10.6
|
68
78
78
|
1450
|
15
|
3.0
|
|
200-200A
|
200
|
125
179
232.5
|
34.7
49.7
64.6
|
11
10
8.5
|
66
76
76
|
1450
|
11
|
3.0
|
|
200-250
|
200
|
140
200
260
|
21.8
20
17
|
21.8
20
17
|
73
79
77
|
1450
|
18.5
|
3.0
|
|
200-250A
|
200
|
129
184.4
240
|
18.5
17
14.4
|
18.5
17
14.4
|
72
78
76
|
1450
|
15
|
3.0
|
|
200-250B
|
200
|
117
167
217.5
|
15.2
14
12
|
15.2
14
12
|
76
|
1450
|
11
|
3.0
|
|
200-315
|
200
|
140
200
260
|
33.8
32
28
|
33.8
32
28
|
70
78
78
|
1450
|
30
|
3.5
|
|
200-315A
|
200
|
131
189
243
|
29.5
28
24.5
|
29.5
28
24.5
|
69
77
77
|
1450
|
22
|
3.5
|
|
200-315B
|
200
|
121
173
225
|
25
24
21
|
25
24
21
|
76
|
1450
|
18.5
|
3.5
|
|
200-400
|
200
|
140
200
260
|
53
50
44
|
53
50
44
|
68
75
71
|
1450
|
45
|
3.5
|
|
200-400A
|
200
|
131
187
243
|
46.6
44
38.3
|
46.6
44
38.3
|
67
74
70
|
1450
|
37
|
3.5
|
|
200-400B
|
200
|
122
174
226.5
|
40
38
33
|
40
38
33
|
73
|
1450
|
30
|
3.5
|
|
200-400C
|
200
|
112
160
208
|
34
32
28
|
34
32
28
|
71
|
1450
|
22
|
3.5
|
|
型號
|
口徑
|
流量
|
揚程
|
效率
|
轉速
|
電機功率
|
必需汽蝕余量
|
|
mm
|
m3/h
|
L/S
|
m
|
%
|
r/min
|
KW
|
（NPSH）r
|
|
200-200(I)
|
200
|
280
400
520
|
77.8
111.1
144
|
13.4
12.5
10.5
|
70
80
79
|
1450
|
22
|
4.0
|
|
200-200(I)A
|
200
|
250
358
465
|
69.4
90.4
129.2
|
10.7
10
8.5
|
68
73
77
|
1450
|
18.5
|
4.0
|
|
200-250(I)
|
200
|
280
400
520
|
77.8
111.1
144
|
22.2
20
14
|
75
80
72
|
1450
|
30
|
4.0
|
|
200-250(I)A
|
200
|
250
358
465
|
69.4
99.4
129.2
|
18
16
11.2
|
73
78
70
|
1450
|
22
|
4.0
|
|
200-250(I)B
|
200
|
226
322
419
|
62.8
89.4
116.4
|
14.4
13
7.3
|
70
75
67
|
1450
|
18.5
|
4.0
|
|
200-315(I)
|
200
|
280
400
520
|
77.8
111.4
144
|
36
32
26
|
73
80
75
|
1450
|
55
|
4.0
|
|
200-315(I)A
|
200
|
262
374
486
|
72.8
103.9
135
|
31.5
28
23
|
72
79
74
|
1450
|
45
|
4.0
|
|
200-315(I)B
|
200
|
242
346
450
|
67.3
96.1
125
|
27
24
19.5
|
78
|
1450
|
37
|
4.0
|
|
200-400(I)
|
200
|
280
400
520
|
77.8
111.4
144
|
54.5
50
39
|
75
81
77
|
1450
|
75
|
4.0
|
|
200-400(I)A
|
200
|
262
374
486
|
72.8
103.9
135
|
48
44
34
|
80
|
1450
|
75
|
4.0
|
|
200-400(I)B
|
200
|
242
346
450
|
67.2
96.1
125
|
41.4
38
29.6
|
78
|
1450
|
55
|
5.0
|
|
200-400(I)C
|
200
|
224
320
416
|
62.2
88.9
115.6
|
34.9
32
25
|
76
|
1450
|
45
|
5.0
|
|
型號
|
口徑
|
流量
|
揚程
|
效率
|
轉速
|
電機功率
|
必需汽蝕余量
|
|
mm
|
m3/h
|
L/S
|
m
|
%
|
r/min
|
KW
|
（NPSH）r
|
|
250-250
|
250
|
350
550
650
|
97.2
152.8
180.5
|
22
20
16
|
78
82
81
|
1450
|
45
|
5.0
|
|
250-250A
|
250
|
300
500
600
|
83.3
139
166.7
|
18.3
17
14
|
76
80
80
|
1450
|
37
|
5.0
|
|
250-235
|
250
|
300
500
600
|
83.3
139
166.7
|
14
12.5
11
|
73
78
70
|
1480
|
22
|
4.5
|
|
250-300
|
250
|
300
500
600
|
83.3
139
166.7
|
22
20
16
|
78
|
1480
|
37
|
4.5
|
|
250-315
|
250
|
350
550
650
|
97.2
152.8
180.5
|
34
32
28
|
76
80
79
|
1450
|
75
|
5.5
|
|
250-315A
|
250
|
300
500
600
|
83.3
139
166.7
|
29.5
28
24
|
74
78
77
|
1450
|
55
|
5.5
|
|
250-315B
|
250
|
260
450
520
|
72.2
125
144.4
|
25
24
20
|
70
74
72
|
1450
|
45
|
5.5
|
|
250-400
|
250
|
300
500
600
|
83.3
139
166.7
|
54.5
50
39
|
72
|
1480
|
90
|
4.5
|
|
型號
|
口徑
|
流量
|
揚程
|
效率
|
轉速
|
電機功率
|
必需汽蝕余量
|
|
mm
|
m3/h
|
L/S
|
m
|
%
|
r/min
|
KW
|
（NPSH）r
|
|
300-235
|
300
|
480
720
900
|
133.3
200
250
|
20
18
15.5
|
77
81
74
|
970
|
55
|
5.0
|
|
300-235A
|
300
|
438
607
821
|
121.7
182.5
228.1
|
16.5
15
13
|
75
79
72
|
970
|
45
|
5.0
|
|
300-235B
|
300
|
400
600
750
|
111.1
167.0
208.3
|
14
12.5
11
|
73
77
70
|
970
|
37
|
5.0
|
|
300-300
|
300
|
480
720
900
|
133.3
200
250
|
31
28
25
|
77
81
77
|
970
|
75
|
5.0
|
|
300-300A
|
300
|
444
666
833
|
123.3
185
231.4
|
26.5
24
21.5
|
76
80
76
|
970
|
75
|
5.0
|
|
300-300B
|
300
|
415
623
779
|
115.3
173.1
261.4
|
23
21
18.5
|
79
|
970
|
55
|
5.0
|
|
300-380
|
300
|
480
720
900
|
133.3
200
250
|
48
44
34
|
84
|
970
|
132
|
5.0
|
|
300-380A
|
300
|
444
666
833
|
123.3
185
231.4
|
41.4
38
30
|
80
|
970
|
110
|
5.0
|
|
300-380B
|
300
|
409
614
767
|
113.6
170.6
213.1
|
35
32
25
|
78
|
970
|
90
|
5.0
|
|
300-235(I)
|
300
|
718
1080
1345
|
199.4
300
373.6
|
44.6
40
34.6
|
82
|
1450
|
160
|
5.5
|
|
300-235(I)A
|
300
|
642
965
1203
|
178.3
268.1
334.2
|
35.7
32
27.7
|
80
|
1450
|
132
|
5.5
|
|
|
|
|
|
|
|
|
訂貨請盡量提供：
1.型號2.口徑3.揚程4.流量5.電機功率（KW）6.轉速（R/min）7.材質8.電壓（V）
歡迎您訪問我們?nèi)_(dá)泵閥【m.tanqinla.com】如有任何疑問.您可以致電給我們,我們定會盡力為您提供優質的服務。
